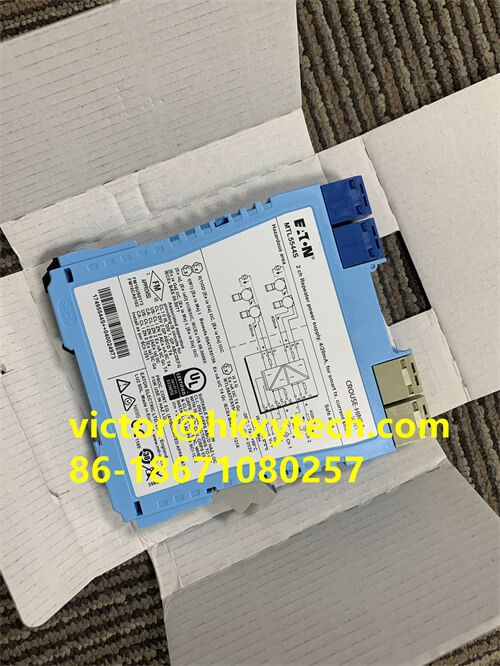

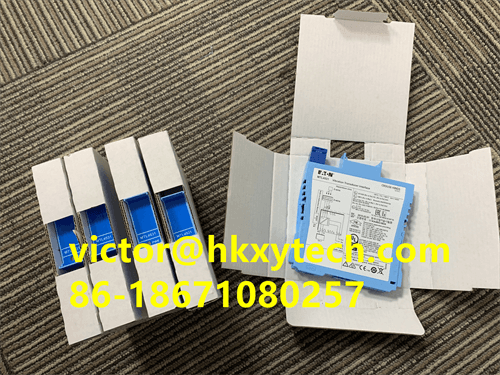

HKXYTECH MTL MTL4546Y Safety Barriers MTL4546Y Isolation Barrier backplane mounting MTL4546 Isolated Barriers In Stock
MTL4546Y
100% New & Original
Need a Quote?Detailed Information
HKXYTECH MTL MTL4546Y Safety Barriers MTL4546Y Isolation Barrier backplane mounting MTL4546 Isolated Barriers In Stock
Specification of HKXYTECH MTL MTL4546Y Safety Barriers MTL4546Y Isolation Barrier backplane mounting MTL4546 Isolated Barriers In Stock
Improving upon the widely adopted, enormously successful, “industry standard” MTL4000 range was a big challenge but the innovative MTL4500 range includes several new features for backplane mounting isolating interfaces. This new family easily integrates with the I/O equipment of all major instrumentation and DCS suppliers in the same secure manner as its predecessor.
SPECIFICATION See also common specification Number of channels One Location of I/P converter Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location Working range 4 to 20mA Digital signal bandwidth 500Hz to 10kHz Maximum load resistance 800Ω (16V at 20mA) Minimum load resistance 90Ω (short-circuit detection at < 50Ω) Output resistance > 1MΩ Under/over range capability Under range = 1mA Over range = 24mA (load ≤ 520Ω) Input and output circuit ripple < 40µA peak-to-peak Transfer accuracy at 20°C Better than 20µA Temperature drift < 1.0µA/°C Input characteristics
LED indicator Green: power indication Maximum current consumption (with 20mA signals into 250Ω load) 35mA at 24V dc Power dissipation within unit (with 20mA signals into 250Ω load) 0.8W at 24V Safety description Uo=28V Io=93mA Po=651mW Um = 253V rms or dc SIL capable These models have been assessed for use in IEC 61508 functional safety applications. SIL2 capable for a single device (HFT=0) SIL3 capable for multiple devices in safety redundant configurations (HFT=1) See data on MTL web site and refer to the safety manual.
SPECIFICATION See also common specification Number of channels One Location of I/P converter Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location Working range 4 to 20mA Digital signal bandwidth 500Hz to 10kHz Maximum load resistance 800Ω (16V at 20mA) Minimum load resistance 90Ω (short-circuit detection at < 50Ω) Output resistance > 1MΩ Under/over range capability Under range = 1mA Over range = 24mA (load ≤ 520Ω) Input and output circuit ripple < 40µA peak-to-peak Transfer accuracy at 20°C Better than 20µA Temperature drift < 1.0µA/°C Input characteristics
Related model codes of HKXYTECH MTL MTL4546Y Safety Barriers MTL4546Y Isolation Barrier backplane mounting MTL4546 Isolated Barriers In Stock
| Model Codes | Description |
| SM45-55-AI | FSM Safety Manual - Analogue Input Modules |
| SM45-55-AI-A | FSM Safety Manual- Analogue Input Modules- A variants |
| SM45-55-AO | FSM Safety Manual - Analogue Output Modules |
| SM45-55-BI | FSM Safety Manual - Binary Input Modules |
| SM45-55-SAD | FSM Safety Manual - Solenoid / Alarm Driver Modules |
| SM4561_5561 | FSM Safety Manual - Fire Detector Interfaces |
| SM45_5501-SR | FSM Safety Manual – Safety proximity detectors |
| SMx531-82 | FSM Safety Manual - Machine Monitor Interfaces |
| 1.Intro | |
| INA4500 | MTL4500/4600 range Instructions for Safe Use |
| INM4500/4600 | MTL4500/4600 range Instruction Manual |
| MTL4500-5500-ACC | Backplanes, Enclosures & Accessories |
| MTL4500-5500-CS | Common Specifications |
| MTL4500-5500-DS | MTL4500-5500 range Data Set |
| 2.DigitalInput | |
| MTL4501-SR | 1ch DI failsafe solid-state output + LFD alarm |
| MTL4504 | 1ch DI relay output + LFD alarm + phase reversal |
| MTL4510 | 4ch DI solid-state output |
| MTL4510B | 4ch DI multifunction solid-state output |
| MTL4511 | 1ch DI relay output |
| MTL4513 | 2ch DI solid-state output |
| MTL4514D | 1ch switch/prox input, dual output relay |
| MTL4514N | 1 ch switch/prox detector, LFD, phase reversal |
| MTL4514_B | 1ch DI relay output + LFD alarm |
| MTL4516 | 2ch DI relay output |
| MTL4516C | 2ch DI with changeover relay output |
| MTL4517 | 2ch DI relay output + LFD alarm |
| 3.DigitalOutput | |
| MTL4521 | Loop powered solenoid driver |
| MTL4521L | loop powered solenoid driver IIC |
| MTL4523 | Solenoid driver with LFD |
| MTL4523L | Loop powered solenoid driver + LFD |
| MTL4523R | Solenoid driver with LFD |
| MTL4523V-VL | Solenoid/Alarm driver with voltage control |
| MTL4524 | Switch operated solenoid driver |
| MTL4524S | Switch operated solenoid driver, 24V override |
| MTL4525 | Switch operated solenoid driver low power |
| MTL4526 | 2ch switch operated relay |
| 4.AnalogueInput | |
| MTL4541 | 1ch 2/3 wire Transmitter repeater |
| MTL4541A | 1ch Transmitter repeater, passive input |
| MTL4541AS | 1ch Transmitter repeater, passive input, current sink |
| MTL4541B | MTL4041B replacement |
| MTL4541P | MTL4041P replacement |
| MTL4541S | 1ch 2/3 wire Transmitter repeater, current sink |
| MTL4541T | 2/3 wire Transmitter repeater |
| MTL4544 | 2ch 2/3 wire Transmitter repeater |
| MTL4544A | 2ch Transmitter repeater, passive input |
| MTL4544AS | 2ch Transmitter repeater, passive input, current sink |
| MTL4544B | MTL4044 replacement |
| MTL4544D | 2/3 wire transmitter repeater, dual output |
| MTL4544S | 2ch 2/3 transmitter repeater, current sink |
| 5.AnalogueOutput | |
| MTL4546 | 1ch 4-20mA smart isolating driver + LFD |
| MTL4546C | 1ch 4-20mA smart isolating driver + oc LFD |
| MTL4546S | 1ch 4-20mA HART isolating driver + LFD |
| 1ch 4-20mA smart isolating driver + oc LFD | |
| MTL4549C | 2ch 4-20mA smart isolating driver + oc LFD |
| MTL4549Y | 2ch 4-20mA smart isolating driver + oc LFD |
| 6.TemperatureInput | |
| MTL4573 | 1ch Temperature converter, RTD / THC |
| MTL4575 | 1ch Temperature converter, RTD / THC with alarm |
| MTL4576-RTD | 2ch Temperature converter, RTD |
| MTL4576-THC | 2ch Temperature converter, THC |
| MTL4581 | 1ch mV/THC isolator for low-level signals |
| MTL4582B | 1ch resistance isolator to repeat RTD signals |
| 7.PulseandVibration | |
| MTL4531 | 1ch vibration probe interface |
| MTL4532 | 1ch pulse isolator, digital or analogue output |
| 8.FireandSmoke | |
| MTL4561 | 2ch loop-powered, for fire and smoke detectors |
| 9.General | |
| MTL4599 | Dummy isolator |
| MTL4599N | General purpose feed-through module |
